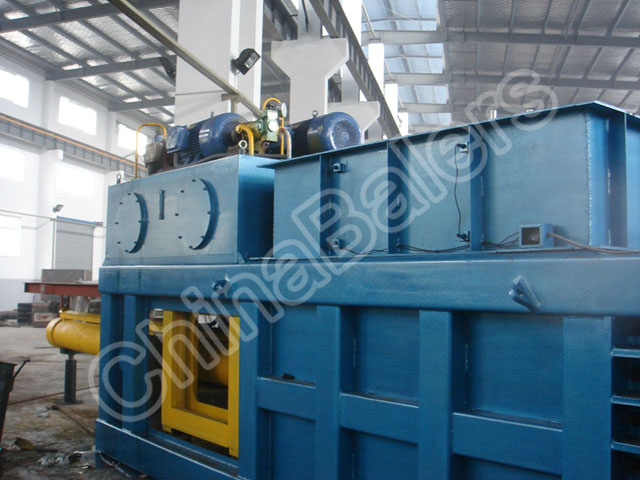

horizontal cardboard baler HPM250

Features Brochure Related Products

Features

Horizontal cardboard baler, manual strapping, automatic feeding with conveyor.

Mitsubishi PLC and local touch screen for operation.

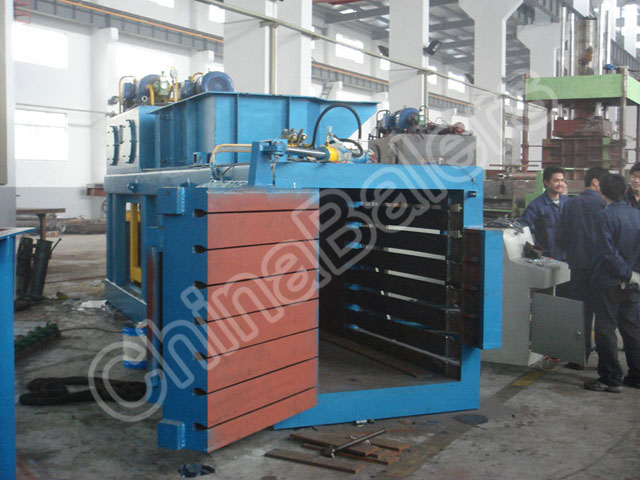

Bale density is higher with closed front door.

Dispersed cutting blades on baler feed opening for cutting of long cardboard material.

HPM250 Main Parameters:

Main cylinder force: 250 MT
Feeding throat: L2200×W1120 MM
Bale size: W1120×H1300 MM
Bale weight: 1050-1500 kg (paper, cardboard)
Production rate: 6.3-9.5 tons/hr (paper, cardboard)
Electric motor: 2×45+7.5+0.75 kW
Conveyor effective width: 1600 MM

horizontal cardboard baler HPM250

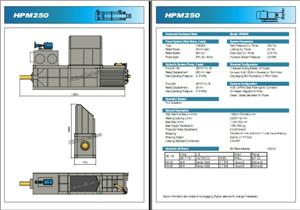

*Click the picture to preview the PDF

*Right-click on the text to download

Application

Horizontal Cardboard Baler HPM250 is applied for automatic feeding (by conveyor), automatic compression, and manual strapping of paper, cardboard, carton, OCC, waste cardboard, scrap cardboard, newspaper, office paper, magazine, corrugated cardboard, carton box, washer & refrigerator box, etc. Horizontal Cardboard Baler HPM250 is also used for baling of soft plastic material (PET bottle, PE film, car bumper, etc), but it's not suitable for baling of hard plastic material (computer case, etc).

Model

Main Cyl. Force

Hopper Size

Bale Size

Bale Weight - Carton

Production - Carton

Motor

Conveyor Width

(Ton)

(L×W)(mm)

(W×H) (mm)

(kg)

(tons/hr)

(kW)

(mm)

HPM63A

63

1400×800

800×800

280-400

1.7-2.4

28.25

1200

HPM63B

1600×720

720×1100

330-470

2.0-2.8

30.25

HPM63C

1800×1100

1100×900

470-630

2.8-3.8

HPM63D

1100×1000

500-670

3.0-4.0

HPM100A

100

2000×900

900×900

450-600

2.7-3.6

38.25

1400

HPM100B

2000×1100

1100×1100

650-900

3.9-5.4

HPM125A

125

2200×1100

1100×900

630-900

3.8-5.4

45.25

1600

HPM125B

1100×1000

680-980

4.1-5.9

HPM125C

1100×1100

730-1050

4.4-6.3

HPM125D

1100×1250

820-1150

4.9-6.9

HPM160A

160

2200×1120

1120×880

700-1050

4.2-6.2

52.25

HPM160B

1120×1300

900-1350

5.4-8.0

HPM250

250

1050-1500

6.3-9.5

98.25

Model	Main Cyl. Force	Hopper Size	Bale Size	Bale Weight - Carton	Production - Carton	Motor	Conveyor Width
Model	(Ton)	(L×W)(mm)	(W×H) (mm)	(kg)	(tons/hr)	(kW)	(mm)
HPM63A	63	1400×800	800×800	280-400	1.7-2.4	28.25	1200
HPM63B		1600×720	720×1100	330-470	2.0-2.8	30.25
HPM63C		1800×1100	1100×900	470-630	2.8-3.8
HPM63D		1800×1100	1100×1000	500-670	3.0-4.0
HPM100A	100	2000×900	900×900	450-600	2.7-3.6	38.25	1400
HPM100B	100	2000×1100	1100×1100	650-900	3.9-5.4	38.25	1400
HPM125A	125	2200×1100	1100×900	630-900	3.8-5.4	45.25	1600
HPM125B			1100×1000	680-980	4.1-5.9
HPM125C			1100×1100	730-1050	4.4-6.3
HPM125D			1100×1250	820-1150	4.9-6.9
HPM160A	160	2200×1120	1120×880	700-1050	4.2-6.2	52.25
HPM160B	160		1120×1300	900-1350	5.4-8.0	52.25
HPM250	250		1120×1300	1050-1500	6.3-9.5	98.25
