automatic PET baler HPA50

Features Brochure Related Products

Features

Automatic horizontal PET baler, automatic wire strapping, automatic feeding with air duct.

PLC control, touch screen & observation window, real-time display & error alarm, bale length setting.

Floating necking device on baler chamber for automatic distribution of pressure on 4 sides.

Dispersed cutting blades on baler feed opening for cutting of material.

HPA50 Main Parameters:

Main cylinder force: 50 MT
Feeding throat: L900×W700 MM
Bale size: W700×H700 MM
Bale weight: 200-230 kg (PET Bottle)
Production rate: 0.9-1.0 tons/hr (PET Bottle)
Electric motor: 22+5.5 kW
Feeding: by air duct - not supplied

automatic PET baler HPA50

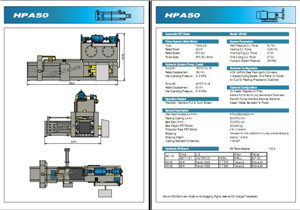

*Click the picture to preview the PDF

*Right-click on the text to download

Application

Automatic PET Baler HPA50 is applied for automatic feeding (by air duct), automatic compression, and automatic strapping of plastic bottles (PET, HDPE, LDPE, PP, PC, PS), plastic packaging film (EVOH, PVDC, MXD6, PAN, PEN, PA666, PA6, PET, HDPE, PP, LDPE, EVA), and plastic printing film (BOPP, CPP, PP, HDPE, LDPE, PA, PC, PVC, EVA), and other soft plastic material. Automatic PET Baler HPA50 is also used for baling of waste paper, scrap cardboard, carton box, newspaper, magzines, etc. Automatic PET Baler HPA50 is not suitable for baling of hard plastic material (computer case, etc).

Model Main Cyl. Force Hopper Size Bale Size Bale Weight
- PET Bottle Production
- PET Bottle Motor Conveyor Width

(Ton) (L×W) (mm) (W×H) (mm) (kg) (tons/hr) (kW) (mm)

HPA50 50 900×700 700×700 200-230 0.9-1.0 22+5.5 Air Duct

HPA63 63 1600×700 210-240 0.9-1.1 37+5.5 1400

HPA80A 80 1600×720 720×1100 380-450 1.7-2.0 45+7.5

HPA80B 1600×800 800×1100 420-500 1.8-2.2

HPA80C 1450×1100 1100×720 380-450 1.7-2.0

HPA100A 100 1600×1000 1000×1100 520-700 2.3-3.1 55+15

HPA100B 1600×1100 1100×1100 560-750 2.5-3.4

HPA125A 125 2200×1100 580-770 2.6-3.5 74+7.5 1600

HPA125B 1100×1250 650-870 2.9-3.9

HPA150A 150 1100×1100 590-790 2.7-3.6 90+7.5

HPA150B 1100×1250 660-880 3.0-4.0

HPA180 180 1100×1100 600-800 4.2-5.6 180+7.5

Model	Main Cyl. Force	Hopper Size	Bale Size	Bale Weight - PET Bottle	Production - PET Bottle	Motor	Conveyor Width
Model	(Ton)	(L×W) (mm)	(W×H) (mm)	(kg)	(tons/hr)	(kW)	(mm)
HPA50	50	900×700	700×700	200-230	0.9-1.0	22+5.5	Air Duct
HPA63	63	1600×700	700×700	210-240	0.9-1.1	37+5.5	1400
HPA80A	80	1600×720	720×1100	380-450	1.7-2.0	45+7.5
HPA80B		1600×800	800×1100	420-500	1.8-2.2
HPA80C		1450×1100	1100×720	380-450	1.7-2.0
HPA100A	100	1600×1000	1000×1100	520-700	2.3-3.1	55+15
HPA100B	100	1600×1100	1100×1100	560-750	2.5-3.4	55+15
HPA125A	125	2200×1100	1100×1100	580-770	2.6-3.5	74+7.5	1600
HPA125B	125		1100×1250	650-870	2.9-3.9	74+7.5
HPA150A	150		1100×1100	590-790	2.7-3.6	90+7.5
HPA150B	150		1100×1250	660-880	3.0-4.0	90+7.5
HPA180	180		1100×1100	600-800	4.2-5.6	180+7.5
