plastic bale press HPM125C

Features Brochure Related Products

Features

Horizontal plastic bale press, manual strapping, automatic feeding with conveyor.

Mitsubishi PLC and local touch screen for operation.

Bale density is higher with closed front door.

Dispersed cutting blades on baler feed opening for cutting of material.

HPM125C Main Parameters:

Main cylinder force: 125 MT
Feeding throat: L2200×W1100 MM
Bale size: W1100×H1100 MM
Bale weight: 600-720 kg (PET Bottle)
Production rate: 2.0-2.5 tons/hr (PET Bottle)
Electric motor: 37+7.5+0.75 kW
Conveyor effective width: 1600 MM

plastic bale press HPM125C

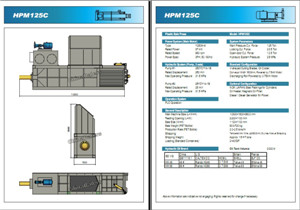

*Click the picture to preview the PDF

*Right-click on the text to download

Application

Plastic Bale Press HPM125C is applied for automatic feeding (by conveyor), automatic compression, and manual strapping of plastic bottles (PET, HDPE, LDPE, PP, PC, PS), plastic packaging film (EVOH, PVDC, MXD6, PAN, PEN, PA666, PA6, PET, HDPE, PP, LDPE, EVA), and plastic printing film (BOPP, CPP, PP, HDPE, LDPE, PA, PC, PVC, EVA), and other soft plastic material. Plastic Bale Press HPM125C is also used for baling of waste paper, scrap cardboard, carton box, newspaper, magzines, etc. Plastic Bale Press HPM125C is not suitable for baling of hard plastic material (computer case, etc).

Model Main Cyl. Force Hopper Size Bale Size Bale Weight
- PET Bottle Production
- PET Bottle Motor Conveyor Width

(Ton) (L×W) (mm) (W×H) (mm) (kg) (tons/hr) (kW) (mm)

HPM63A 63 1400×800 800×800 270-320 0.9-1.1 28.25 1200

HPM63B 1600×720 720×1100 320-380 1.1-1.3 30.25

HPM63C 1800×1100 1100×900 430-490 1.5-1.7

HPM63D 1100×1000 460-530 1.6-1.8

HPM100A 100 2000×900 900×900 420-480 1.5-1.7 38.25 1400

HPM100B 2000×1100 1100×1100 570-680 1.9-2.3

HPM125A 125 2200×1100 1100×900 500-600 1.7-2.1 45.25 1600

HPM125B 1100×1000 550-650 1.9-2.3

HPM125C 1100×1100 600-720 2.0-2.5

HPM125D 1100×1250 660-800 2.3-2.8

HPM160A 160 2200×1120 1120×880 520-630 1.8-2.2 52.25

HPM160B 1120×1300 720-870 2.5-3.0

HPM250 250 780-950 3.5-4.3 98.25

Model	Main Cyl. Force	Hopper Size	Bale Size	Bale Weight - PET Bottle	Production - PET Bottle	Motor	Conveyor Width
Model	(Ton)	(L×W) (mm)	(W×H) (mm)	(kg)	(tons/hr)	(kW)	(mm)
HPM63A	63	1400×800	800×800	270-320	0.9-1.1	28.25	1200
HPM63B		1600×720	720×1100	320-380	1.1-1.3	30.25
HPM63C		1800×1100	1100×900	430-490	1.5-1.7
HPM63D		1800×1100	1100×1000	460-530	1.6-1.8
HPM100A	100	2000×900	900×900	420-480	1.5-1.7	38.25	1400
HPM100B	100	2000×1100	1100×1100	570-680	1.9-2.3	38.25	1400
HPM125A	125	2200×1100	1100×900	500-600	1.7-2.1	45.25	1600
HPM125B			1100×1000	550-650	1.9-2.3
HPM125C			1100×1100	600-720	2.0-2.5
HPM125D			1100×1250	660-800	2.3-2.8
HPM160A	160	2200×1120	1120×880	520-630	1.8-2.2	52.25
HPM160B	160		1120×1300	720-870	2.5-3.0	52.25
HPM250	250		1120×1300	780-950	3.5-4.3	98.25
