cardboard waste baler HPA125B

Features Brochure Related Products

Featuress

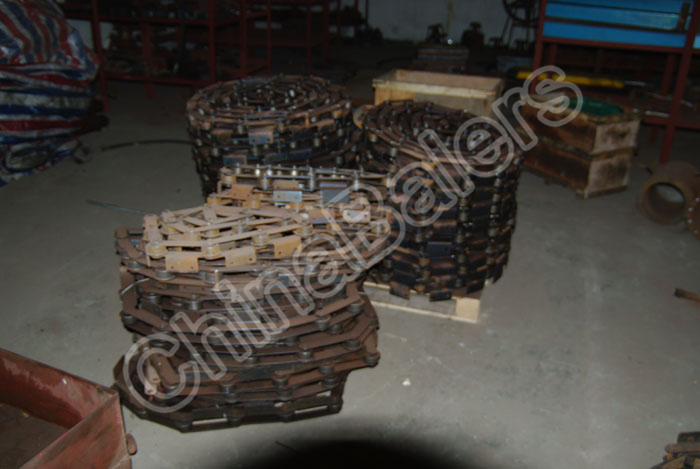

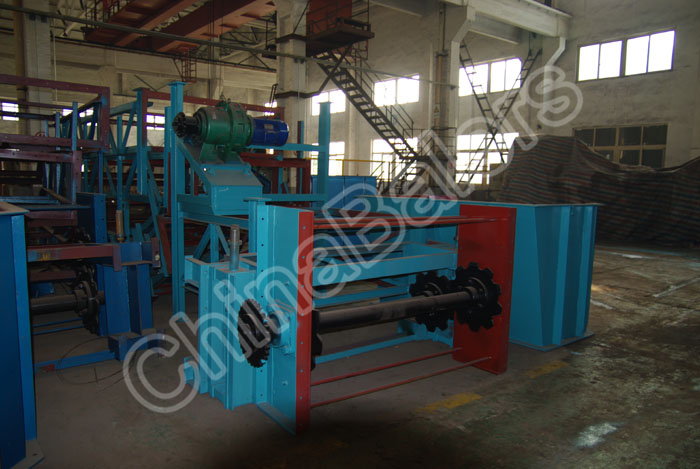

Horizontal cardboard baler, automatic wire strapping, automatic feeding with conveyor.

PLC control, touch screen & observation window, real-time display & error alarm, bale length setting.

Floating necking device on baler chamber for automatic distribution of pressure on 4 sides.

Dispersed cutting blades on baler feed opening for cutting of long cardboard material.

HPA125B Main Parameters:

Main cylinder force: 125 MT
Feeding throat: L2200×W1100 MM
Bale size: W1100×H1250 MM
Bale weight: 790-1250 kg (paper, cardboard)
Production rate: 7.9-11.2 tons/hr (paper, cardboard)
Electric motor: 2×37+7.5 kW
Conveyor effective width: 1600 MM

cardboard waste baler HPA125B

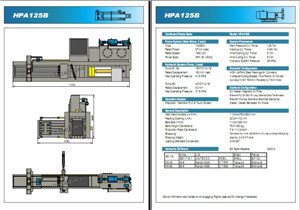

*Click the picture to preview the PDF

*Right-click on the text to download

Application

Cardboard Waste Baler HPA125B is applied for automatic feeding (by conveyor), automatic compression, and automatic strapping of paper, cardboard, carton, OCC, waste cardboard, scrap cardboard, newspaper, office paper, magazine, corrugated cardboard, carton box, washer & refrigerator box, etc. Cardboard Waste Baler HPA125B is also used for baling of soft plastic material (PET bottle, PE film, car bumper, etc), but it's not suitable for baling of hard plastic material (computer case, etc).

Model Main Cyl. Force Hopper Size Bale Size Bale Weight
- Carton Production
- Carton Power Conveyor Width

(Ton) (L×W) (mm) (W×H) (mm) (kg) (tons/hr) (kW) (mm)

HPA50 50 900×700 700×700 200-280 1.4-2.0 22+5.5 Air Duct

HPA63 63 1600×700 230-310 2.1-2.8 37+5.5 1400

HPA80A 80 1600×720 720×1100 400-530 3.2-4.2 45+7.5

HPA80B 1600×800 800×1100 430-580 3.4-4.6

HPA80C 1450×1100 1100×720 400-530 3.5-4.8

HPA100A 100 1600×1000 1000×1100 670-1050 6.0-8.5 55+15

HPA100B 1600×1100 1100×1100 720-1150 6.4-9.1

HPA125A 125 2200×1100 720-1150 7.2-10.2 74+7.5 1600

HPA125B 1100×1250 790-1250 7.9-11.2

HPA150A 150 1100×1100 760-1280 7.6-11.5 90+7.5

HPA150B 1100×1250 830-1400 8.3-12.6

HPA180 180 1100×1100 810-1350 11.3-16.2 180+7.5

Model	Main Cyl. Force	Hopper Size	Bale Size	Bale Weight - Carton	Production - Carton	Power	Conveyor Width
Model	(Ton)	(L×W) (mm)	(W×H) (mm)	(kg)	(tons/hr)	(kW)	(mm)
HPA50	50	900×700	700×700	200-280	1.4-2.0	22+5.5	Air Duct
HPA63	63	1600×700	700×700	230-310	2.1-2.8	37+5.5	1400
HPA80A	80	1600×720	720×1100	400-530	3.2-4.2	45+7.5
HPA80B		1600×800	800×1100	430-580	3.4-4.6
HPA80C		1450×1100	1100×720	400-530	3.5-4.8
HPA100A	100	1600×1000	1000×1100	670-1050	6.0-8.5	55+15
HPA100B	100	1600×1100	1100×1100	720-1150	6.4-9.1	55+15
HPA125A	125	2200×1100	1100×1100	720-1150	7.2-10.2	74+7.5	1600
HPA125B	125		1100×1250	790-1250	7.9-11.2	74+7.5
HPA150A	150		1100×1100	760-1280	7.6-11.5	90+7.5
HPA150B	150		1100×1250	830-1400	8.3-12.6	90+7.5
HPA180	180		1100×1100	810-1350	11.3-16.2	180+7.5
