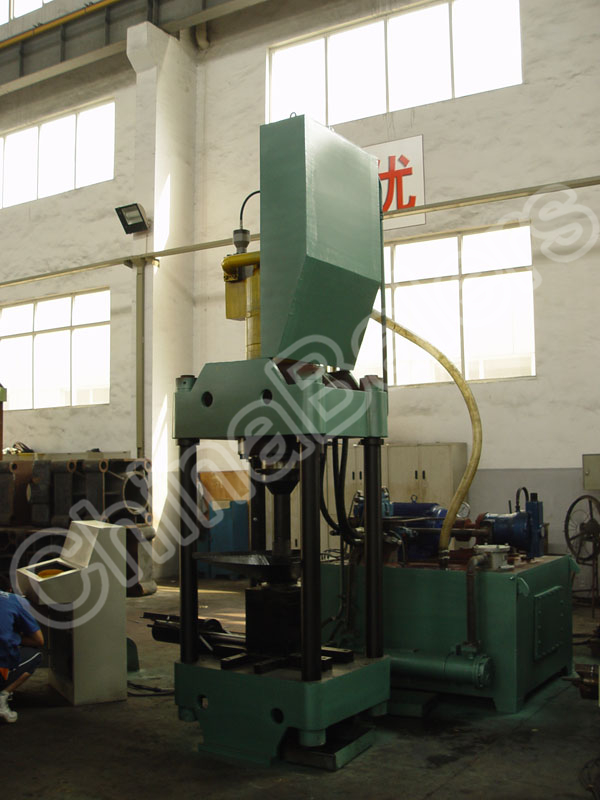

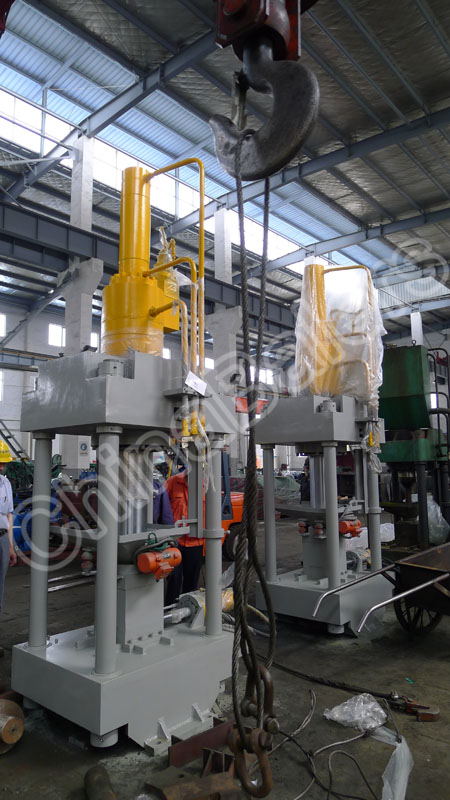

briquette machine YE83-250

Features Brochure Related Products

Features

Vertical briquette machine, briquette density is high.

Robust machine of solid structure, special alloy for press mould liners.

Hydraulic oil cooler: standard water cooler (need cooling tower to supply cool water); optional normal air cooler, or compulsory air cooler (air cooler with compressor).

Magnetic return oil filter. NOK (Japan) seals for cylinders.

Hydraulic drive, Mitsubishi PLC operation.

Feeding conveyor & vibrating motor are optional for charging of material.

YE83-250 Main Parameters:

Main cylinder force: 200 MT
Auxiliary cylinder force: 55 MT
Press mould size: dia110×H300 / dia120×H300 MM

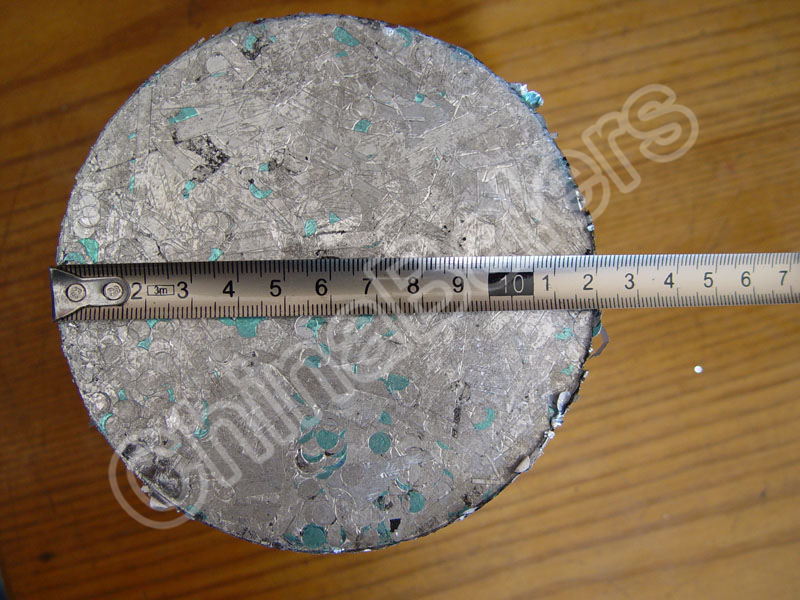

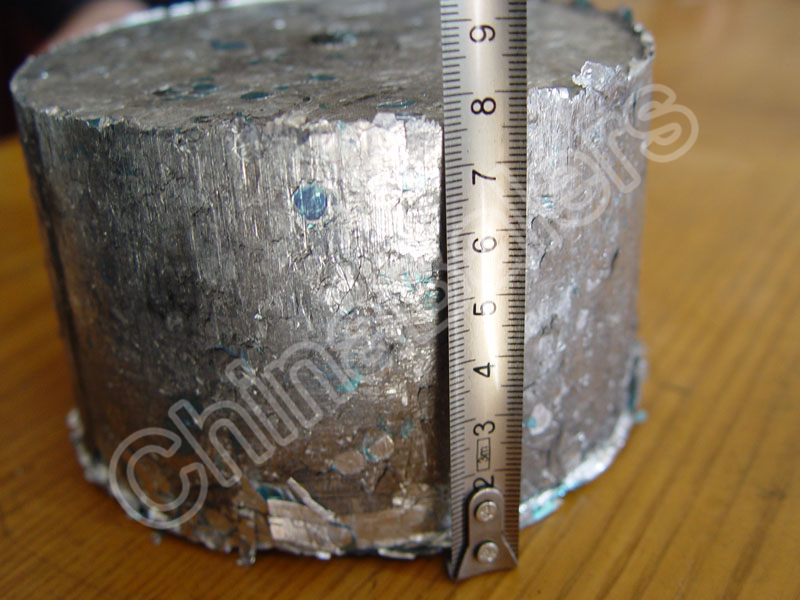

Briquette size: dia110×H(70-100) / dia120×H(70-100) MM
Briquette weight: 3.6-5.2 / 4.1-5.9 kg (cast iron)
Production rate: 1000-1100 kg/hr (cast iron)
Electric motor: 22 kW

briquette machine YE83-250

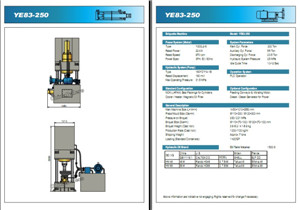

*Click the picture to preview the PDF

*Right-click on the text to download

Application

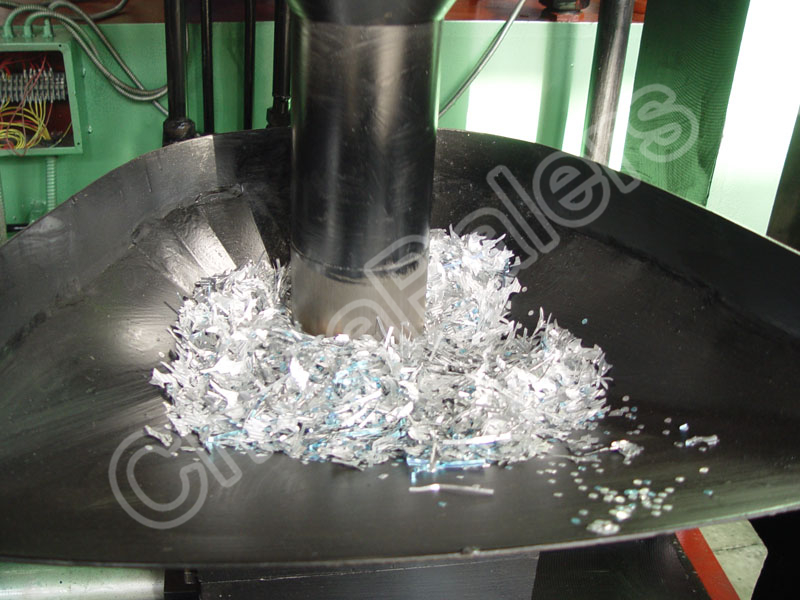

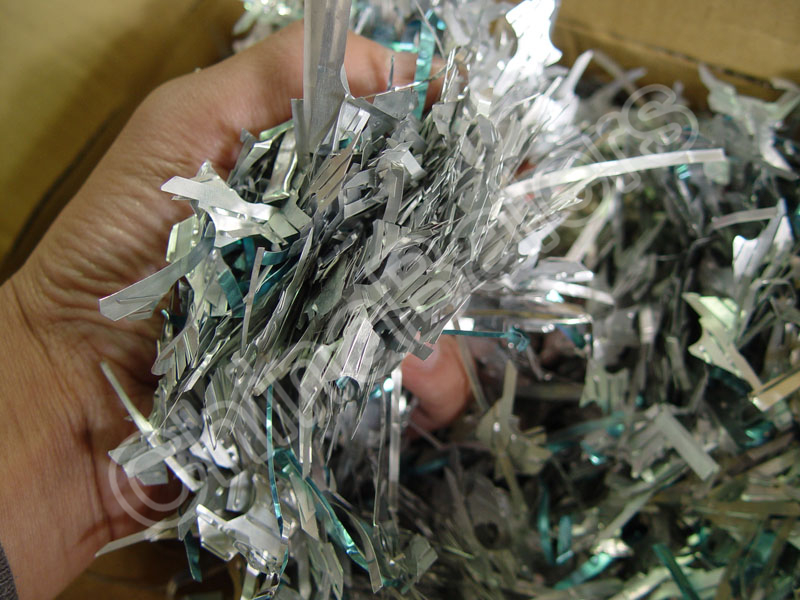

Briquette Machine YE83-250 is applied in steel mills, foundries, recycling plants, ferrous & non ferrous smelting industry to press scrap metal chips (max. length 40mm) into high density briquettes (cylinders). Briquette Machine YE83-250 is good for briquetting of cast iron powder, crushed steel turnings, aluminum swarf, copper milling chips, all sorts of metal sawdust, particles, chips & fins, and metal cans shredded to small pieces (smaller than 40mm). Briquette Machine YE83-250 is NOT SUITABLE for: wood sawdust, coir fibre, biomass material.

Model

Cyl. Force

Press Mould

Pressure on
Briquet

Briquet Size

Briquet Weight -
Cast Iron

Production Rate -
Cast Iron

Motor

(kN)

(mm)

(MPa)

(mm)

(kg)

(kg/hr)

(kW)

Y83-250

2000+550

dia110×180

263

dia110×(50-70)

2.6-3.7

800-900

18.5

dia120×180

221

dia120×(50-70)

2.9-4.1

YE83-250

2000+550

dia110×300

263

dia110×(70-100)

3.6-5.2

1000-1100

22

dia120×300

221

dia120×(70-100)

4.1-5.9

Y83-315

2850+550

dia120×180

278

dia120×(50-70)

3.1-4.5

900-1100

22

dia140×180

204

dia140×(50-70)

3.6-5.1

YE83-315

2850+550

dia120×300

278

dia120×(70-100)

4.4-6.3

1100-1200

30

Y83-400

3450+550

dia125×300

326

dia125×(70-100)

5-7.2

1200-1300

30/37

dia140×300

260

dia140×(70-100)

5.9-8.5

Y83-500

4900+600

dia150×300

283

dia150×(70-100)

6.9-9.9

1300-1800

30/45

dia180×300

196

dia180×(70-100)

8.9-12.8

YE83-500

4900+600

dia150×300

283

dia150×(70-100)

6.9-9.9

1300-1800

45

dia180×300

196

dia180×(70-100)

8.9-12.8

Model	Cyl. Force	Press Mould	Pressure on Briquet	Briquet Size	Briquet Weight - Cast Iron	Production Rate - Cast Iron	Motor
Model	(kN)	(mm)	(MPa)	(mm)	(kg)	(kg/hr)	(kW)
Y83-250	2000+550	dia110×180	263	dia110×(50-70)	2.6-3.7	800-900	18.5
Y83-250	2000+550	dia120×180	221	dia120×(50-70)	2.9-4.1	800-900	18.5
YE83-250	2000+550	dia110×300	263	dia110×(70-100)	3.6-5.2	1000-1100	22
YE83-250	2000+550	dia120×300	221	dia120×(70-100)	4.1-5.9	1000-1100	22
Y83-315	2850+550	dia120×180	278	dia120×(50-70)	3.1-4.5	900-1100	22
Y83-315	2850+550	dia140×180	204	dia140×(50-70)	3.6-5.1	900-1100	22
YE83-315	2850+550	dia120×300	278	dia120×(70-100)	4.4-6.3	1100-1200	30
Y83-400	3450+550	dia125×300	326	dia125×(70-100)	5-7.2	1200-1300	30/37
Y83-400	3450+550	dia140×300	260	dia140×(70-100)	5.9-8.5	1200-1300	30/37
Y83-500	4900+600	dia150×300	283	dia150×(70-100)	6.9-9.9	1300-1800	30/45
Y83-500	4900+600	dia180×300	196	dia180×(70-100)	8.9-12.8	1300-1800	30/45
YE83-500	4900+600	dia150×300	283	dia150×(70-100)	6.9-9.9	1300-1800	45
YE83-500	4900+600	dia180×300	196	dia180×(70-100)	8.9-12.8	1300-1800	45
