car baler HBB-125/6000

Features Brochure Related Products

Features

Large press box & feed opening, convenient for feeding large volume bulky material, production effeciency is high.

90-degree rotating, hinged pressing lid solved the problem of synchronization. The swing is steady, the side pressing force is big.

Control of mechanical, electrical & hydraulic system are integrated in Siemens PLC & remote controller,easy for operation & maintenance.

Automatic lubrication unit, NOK (Japan) seals for all the cylinders.

HBB-125/6000 Main Parameters:

Main cylinder force: 125 MT
Feed opening: L6000×W2500 MM
Bale size: W720×H650 MM
Bale weight: 400-700 kg (whole car)
Production rate: 10-15 cars per hour
Power: Cummins diesel 121 kW

car baler HBB-125/6000

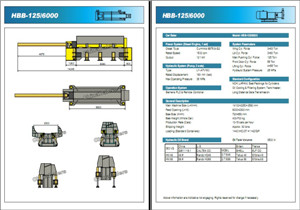

*Click the picture to preview the PDF

*Right-click on the text to download

Application

Car baler HBB-125/6000 is applied for baling of whole car bodies (without engine block, gear box, extinguisher, axles, tyres), bicycles, roof & fence material, tin plates, empty cans & drums (without paint), light metallic structural parts, miscellaneous low carbon scrap steel, and non ferrous metal scrap (stainless steel, aluminum alloy, copper, etc). Car baler HBB-125/6000 is widely used in scrap car recycling plants, steel mills, foundries, non ferrous smelting industry.

Model

Main Cyl. Force

Press Box Size

Bale Size

Bale Weight (kg)

Production Rate (tons/hr)

Motor

(Ton)

(mm)

(mm)

Steel

Aluminum

Copper

Steel

Aluminum

Copper

(kW)

HBB-125/6000

125

6000×2300

720×650

whole car

10-15 cars

121 Diesel

Y81T-200C

200

1800×1400×900

500×500

180-350

60-120

200-380

3.5-6.0

1.2-2.1

3.8-6.5

2×22

YE81T-200C

200

1800×1400×1000

400×400

450×450

YE81T-250C

250

2000×1400×1200

450×450

250-450

85-160

270-500

4.5-7.0

1.5-2.5

5.0-8.0

2×30

500×500

Y81T-250D

250

2000×1750×1200

500×500

2×30

Y81T-315B

315

2500×2000×1200

600×600

400-700

140-240

440-770

6.0-10.0

2.1-3.5

6.6-11.0

2×45

YE81T-315B

315

2600×2000×1200

500×600

YE81T-400C

400

3000×2000×1200

600×700

500-800

170-280

550-880

7.0-11.0

2.4-3.9

7.7-12.0

2×45

YE81T-400D

400

5000×2000×1200

700×700

600-900

210-320

660-990

8.0-12.0

2.8-4.2

8.8-13.0

3×45

Model	Main Cyl. Force	Press Box Size	Bale Size	Bale Weight (kg)			Production Rate (tons/hr)			Motor
	(Ton)	(mm)	(mm)	Steel	Aluminum	Copper	Steel	Aluminum	Copper	(kW)
HBB-125/6000	125	6000×2300	720×650	whole car			10-15 cars			121 Diesel
Y81T-200C	200	1800×1400×900	500×500	180-350	60-120	200-380	3.5-6.0	1.2-2.1	3.8-6.5	2×22
YE81T-200C	200	1800×1400×1000	400×400
			450×450
YE81T-250C	250	2000×1400×1200	450×450	250-450	85-160	270-500	4.5-7.0	1.5-2.5	5.0-8.0	2×30
			500×500
Y81T-250D	250	2000×1750×1200	500×500							2×30
Y81T-315B	315	2500×2000×1200	600×600	400-700	140-240	440-770	6.0-10.0	2.1-3.5	6.6-11.0	2×45
YE81T-315B	315	2600×2000×1200	500×600
YE81T-400C	400	3000×2000×1200	600×700	500-800	170-280	550-880	7.0-11.0	2.4-3.9	7.7-12.0	2×45
YE81T-400D	400	5000×2000×1200	700×700	600-900	210-320	660-990	8.0-12.0	2.8-4.2	8.8-13.0	3×45
