PE baling press YE82T-35F

Features Brochure Related Products

Features

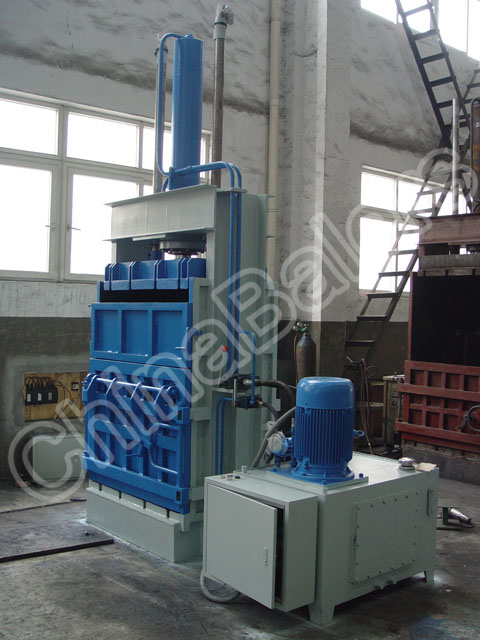

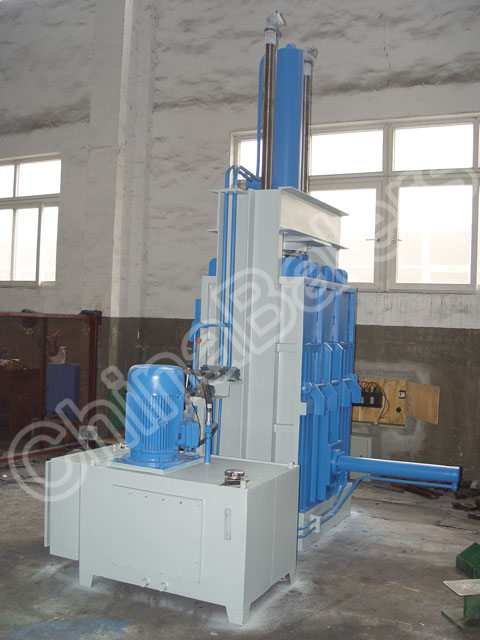

Vertical PE Baling Press, manual feeding.

Manual valve operation.

Manual (1-way) strapping & wire tying, bale discharging by cylinder.

Anti spring back latches optional.

YE82T-35F Main Parameters:

Main cylinder force: 35 MT
Press box size: L1100×W750×H1500 MM
Bale size: L1100×W750 MM
Bale weight: 200-300 kg (PE Film)
Production rate: 600-1000 kg/hr (PE Film)
Electric motor: 15 kW

PE baling press YE82T-35F

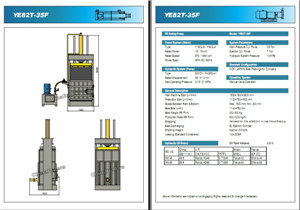

*Click the picture to preview the PDF

*Right-click on the text to download

Application

PE Baling Press YE82T-35F is used for baling of plastic bottles (PET, HDPE, LDPE, PP, PC, PS), plastic packaging film (EVOH, PVDC, MXD6, PAN, PEN, PA666, PA6, PET, HDPE, PP, LDPE, EVA), and plastic printing film (BOPP, CPP, PP, HDPE, LDPE, PA, PC, PVC, EVA), and other soft plastic material. PE Baling Press YE82T-35F is also applied for baling of waste paper, scrap cardboard, carton box, newspaper, magzines, etc. PE Baling Press YE82T-35F is not suitable for baling of hard plastic material (computer case, etc).

Model

Main Cyl. Force

Press Box Size

Bale Size

Bale Weight
- PE Film

Production
- PE Film

Power

(Ton)

(L×W×H) (mm)

(W×H) (mm)

(kg)

(kg/hr)

(kW)

CY3280

3

600×500×985

600×500

20-35

80-150

1.5

YE82-12F

12

1200×900×1170

1200×900

150-250

900-1500

4

YE82-25DC

25

1520×760×1370

1520×760

350-600

1000-1800

11

Y82T-25F

25

1100×800×1650

1100×800

200-300

600-1000

15

YE82T-35F

35

1100×750×1500

1100×750

Y82T-63F

63

1100×800×1500

1100×800

200-350

600-1200

YE82T-100F

100

1100×740×1700

1100×740

250-400

750-1400

YE82-63FB

63

1100×1100×1600

1100×1100

350-600

1000-2000

YE82-100FB

100

1100×1100×1600

1100×1100

18.5

YE82-100Q

100

1100×700×1500

1100×700

250-400

750-1400

15

YE82-120Q

120

1120×740×1700

1120×740

18.5

Model	Main Cyl. Force	Press Box Size	Bale Size	Bale Weight - PE Film	Production - PE Film	Power
Model	(Ton)	(L×W×H) (mm)	(W×H) (mm)	(kg)	(kg/hr)	(kW)
CY3280	3	600×500×985	600×500	20-35	80-150	1.5
YE82-12F	12	1200×900×1170	1200×900	150-250	900-1500	4
YE82-25DC	25	1520×760×1370	1520×760	350-600	1000-1800	11
Y82T-25F	25	1100×800×1650	1100×800	200-300	600-1000	15
YE82T-35F	35	1100×750×1500	1100×750	200-300	600-1000
Y82T-63F	63	1100×800×1500	1100×800	200-350	600-1200
YE82T-100F	100	1100×740×1700	1100×740	250-400	750-1400
YE82-63FB	63	1100×1100×1600	1100×1100	350-600	1000-2000
YE82-100FB	100	1100×1100×1600	1100×1100	350-600	1000-2000	18.5
YE82-100Q	100	1100×700×1500	1100×700	250-400	750-1400	15
YE82-120Q	120	1120×740×1700	1120×740	250-400	750-1400	18.5
