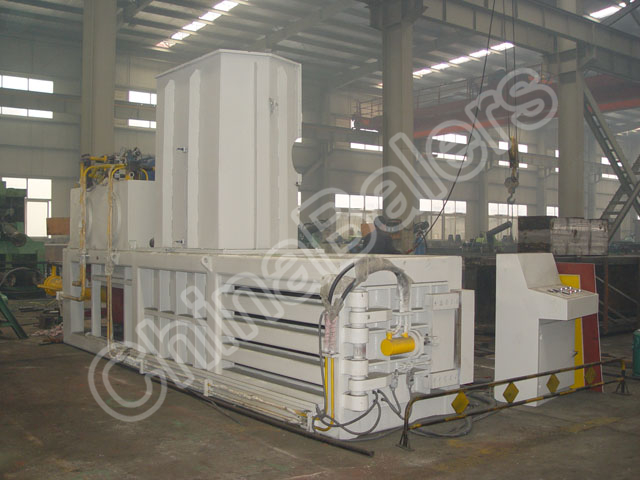

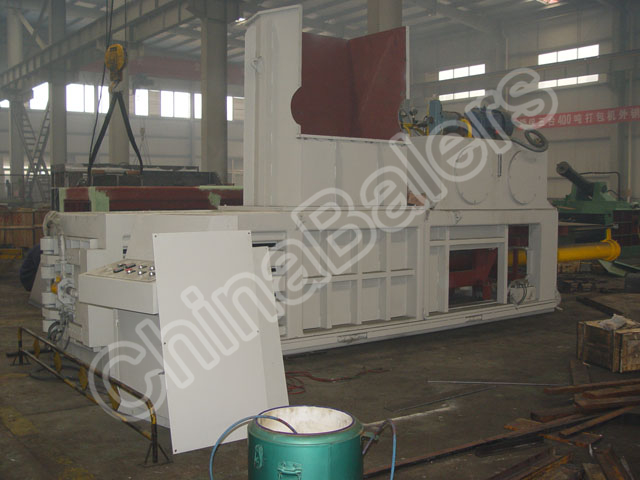

PE horizontal baler HPM63D

Features Brochure Related Products

Features

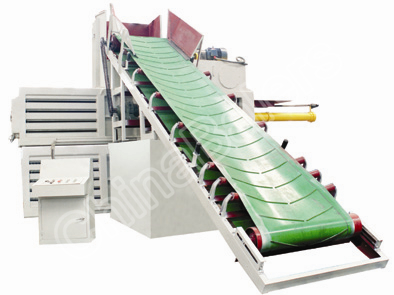

PE horizontal baler, manual strapping, automatic feeding with conveyor.

Mitsubishi PLC and local touch screen for operation.

Bale density is higher with closed front door.

Dispersed cutting blades on baler feed opening for cutting of material.

HPM63D Main Parameters:

Main cylinder force: 63 MT
Feeding throat: L1800×W1100 MM
Bale size: L1100×W1000 MM
Bale weight: 500-800 kg (PE Film)
Production rate: 3.0-5.0 tons/hr (PE film)
Electric motor: 22+7.5+0.75 kW
Conveyor effective width: 1200 MM

PE horizontal baler HPM63D

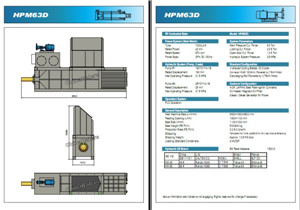

*Click the picture to preview the PDF

*Right-click on the text to download

Application

PE Horizontal Baler HPM63D is applied for automatic feeding (by conveyor), automatic compression, and manual strapping of plastic bottles (PET, HDPE, LDPE, PP, PC, PS), plastic packaging film (EVOH, PVDC, MXD6, PAN, PEN, PA666, PA6, PET, HDPE, PP, LDPE, EVA), and plastic printing film (BOPP, CPP, PP, HDPE, LDPE, PA, PC, PVC, EVA), and other soft plastic material. PE Horizontal Baler HPM63D is also used for baling of waste paper, scrap cardboard, carton box, newspaper, magzines, etc. PE Horizontal Baler HPM63D is not suitable for baling of hard plastic material (computer case, etc).

Model Main Cyl. Force Hopper Size Bale Size Bale Weight
- PET Bottle Production
- PET Bottle Motor Conveyor Width

(Ton) (L×W) (mm) (W×H) (mm) (kg) (tons/hr) (kW) (mm)

HPM63A 63 1400×800 800×800 270-320 0.9-1.1 28.25 1200

HPM63B 1600×720 720×1100 320-380 1.1-1.3 30.25

HPM63C 1800×1100 1100×900 430-490 1.5-1.7

HPM63D 1100×1000 460-530 1.6-1.8

HPM100A 100 2000×900 900×900 420-480 1.5-1.7 38.25 1400

HPM100B 2000×1100 1100×1100 570-680 1.9-2.3

HPM125A 125 2200×1100 1100×900 500-600 1.7-2.1 45.25 1600

HPM125B 1100×1000 550-650 1.9-2.3

HPM125C 1100×1100 600-720 2.0-2.5

HPM125D 1100×1250 660-800 2.3-2.8

HPM160A 160 2200×1120 1120×880 520-630 1.8-2.2 52.25

HPM160B 1120×1300 720-870 2.5-3.0

HPM250 250 780-950 3.5-4.3 98.25

Model	Main Cyl. Force	Hopper Size	Bale Size	Bale Weight - PET Bottle	Production - PET Bottle	Motor	Conveyor Width
Model	(Ton)	(L×W) (mm)	(W×H) (mm)	(kg)	(tons/hr)	(kW)	(mm)
HPM63A	63	1400×800	800×800	270-320	0.9-1.1	28.25	1200
HPM63B		1600×720	720×1100	320-380	1.1-1.3	30.25
HPM63C		1800×1100	1100×900	430-490	1.5-1.7
HPM63D		1800×1100	1100×1000	460-530	1.6-1.8
HPM100A	100	2000×900	900×900	420-480	1.5-1.7	38.25	1400
HPM100B	100	2000×1100	1100×1100	570-680	1.9-2.3	38.25	1400
HPM125A	125	2200×1100	1100×900	500-600	1.7-2.1	45.25	1600
HPM125B			1100×1000	550-650	1.9-2.3
HPM125C			1100×1100	600-720	2.0-2.5
HPM125D			1100×1250	660-800	2.3-2.8
HPM160A	160	2200×1120	1120×880	520-630	1.8-2.2	52.25
HPM160B	160		1120×1300	720-870	2.5-3.0	52.25
HPM250	250		1120×1300	780-950	3.5-4.3	98.25
